260m Depth Track CWD260 Water Drilling Machine Multifunctional

Brand Name : JCDRILL

Model Number : CWD260

Certification : ISO,CE

Place of Origin : Hebei,China

MOQ : 1Set

Price : Negotation

Payment Terms : T/T, L/C, D/P, Western Union, MoneyGram

Supply Ability : 2000 Set/Sets per Year

Delivery Time : 15 To be negotiated

Dimension : 4250*1900*2600m

Driling Diameter : 90-350mm

Mud pump : BW450

Drilling Depth : MAX.260

Weight : 6500KG

Contact Now

CWD260 Multi-functional track mounted water well drilling rig

CWD260 Multi-functional track mounted water well drilling rig is a efficient,multi-function full hydraulic water well drilling rig.It is high efficiency because of having a larger torque of the turntable and is mainly used for water well in industry and agriculture, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular at home and abroad.

CWD260 crawler mounted drilling rig can drilling in all kinds formations by mud drilling in soft formation and air DTH hammer in rock drilling,DTH Hammer is applied in rock drilling, slag is discharged by air pressure and the offstage efficiency is ten times than traditional rotary drilling.

CWD260 deep water well drilling rigs, in cutting drilling or rotary drilling can be operated in unconsolidated layer, and the slag can be discharged under by mud, the impact drilling operation can also be adopted and slag can be discharged by pressure air, the hydraulic water well drilling rig suitable for drilling complicated geological conditions.

Quality Products

Beautiful Price

Excellent Service

COMPACT DIMENSIONS

EXTENDING UNDERCARRIAGE

STRONGER FRAME

SIMPLE CONTROL

SEASY MAINTENANCE

VERSATILITY

260m Depth Track CWD260 Water Drilling Machine Multifunctional


Right elevation	Left elevation	Front elevation

PRODUCT SPECIFICATION

Specification	Unit	CWD260
Geology drilled		All kind
Drilling Type		DTH&Mud Rotary
Drill system and operation		Hydraulic
Hole Diameter	mm	φ90-φ350
Hole Depth	m	260
Rotation Torque	Nm	7000-9000
Rotation Speed	rpm	0-90
Drill pipe diameter	mm	89/102/114
Drill pipe length	mm	3000
Max. Feed Speed	M/min	18
Max. Lifting Speed	M/min	5-20
Feed Stroke	mm	3400
Max.Lifting Force	Ton	13
Lifting force of Main Winch(Optional)	T	4
Lifting force of Hoist	Kgs	1500
Lifting Height of Tool Winch	m	6
Engine
Diesel Engine type	YUCHAI
Model	YC4D95Z-T21
Rated Horse power	Kw	85
Electrical System	Volt	24
Compressor required
Compressor type	Rotary Screw/Movable
Pressure Required	Mpa	1.2-3.0
Air consumption	m³/min	11-35
Mud Pump(Optional)
Type	Hydraulic
Model	BW450
Stroke	mm	100
Displacement	L/min	450
Discharge pressure(Mpa)	Mpa	5
Suction Tube Diameter	mm	85
Discharge Pipe Diameter	mm	51
Foam Pump	Optional
Dimension
Net Weight	Kgs	6500
Transportation dimension	mm	425019002600
Ground Clearance	mm	300

PRODUCTS LOADING

260m Depth Track CWD260 Water Drilling Machine Multifunctional

SUCCESSFUL PROJECT

260m Depth Track CWD260 Water Drilling Machine Multifunctional

RELATED PRODUCTS

CWD400 Trailer Mounted

400m Water Well Drillling Rig

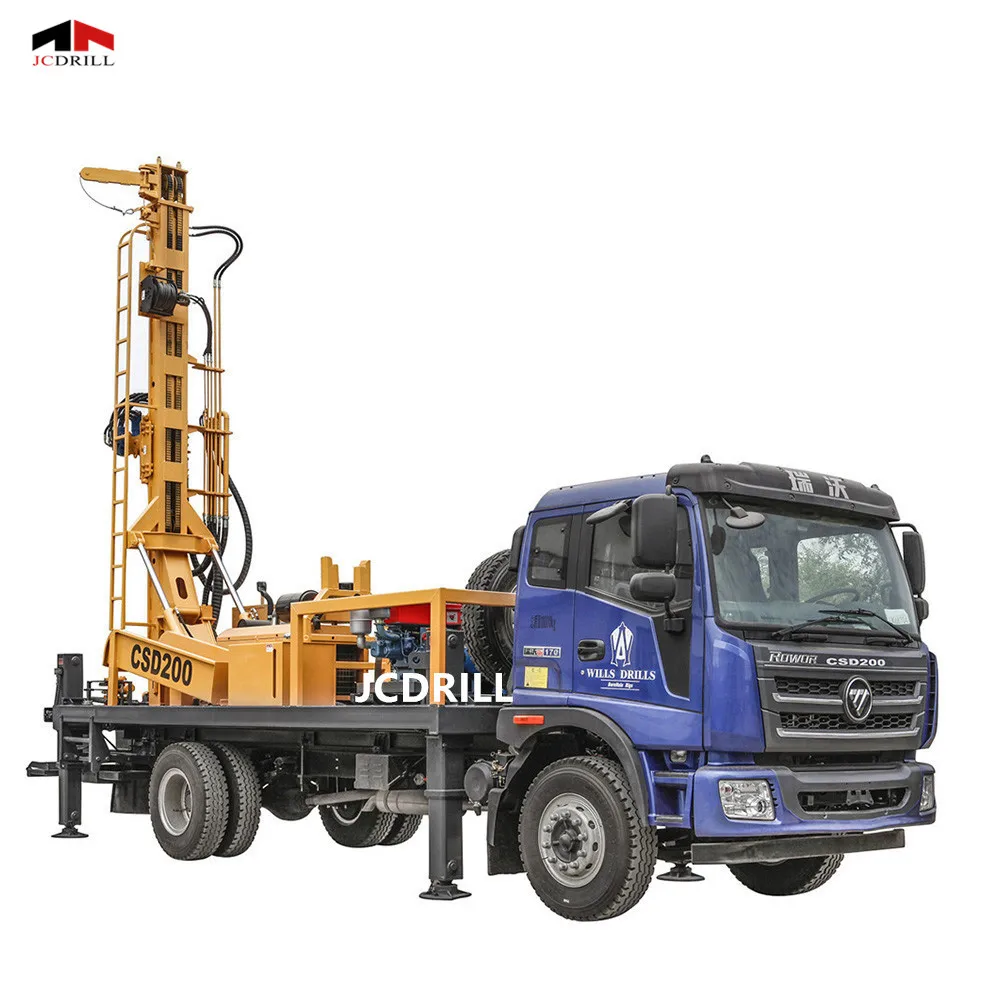

CSD200 Truck Mounted
